DEUTZ Engine Introduction
Ai Power Deutz series generator set adopts Deutz engine as the power source, the engines we are selling are from Dalian Deutz Engine Co., Ltd. and Hebei Huabei Diesel Engine Co., Ltd.
Dalian Deutz Engine Co., Ltd. is a joint venture company built by FAW group and Deutz AG in 2007 with 2000 workers and 200,000 units production capacity, the company mainly produce BFM3 and BFM2012 and 1013 series for generator use with power from 20kva to 200kva. it has first top quality production line with all the world famous machine center.
Hebei Huabei Diesel Engine Co., Ltd. is built in 1970 by Chinese government, It is the only company which allowed to produce the Deutz BFM1015 and TCD2015, it has covered the power from 225kva to 750kva include 6L, 8V, 12V cylinders engines.With the stability, ecnomic, lower noise and fuel consumption, cold start ability, etc advantages, Deutz engine is widely used on all kinds machines, some of BFM1015 models has EURO II certificate.
Alternator Introduction
The alternator wechoose the international famous brand like Stamford, Leroysomer, Marathon, etc, they all enjoy the global warranty. We can supply low, medium, and high voltage alternator for your options.
Generator Set

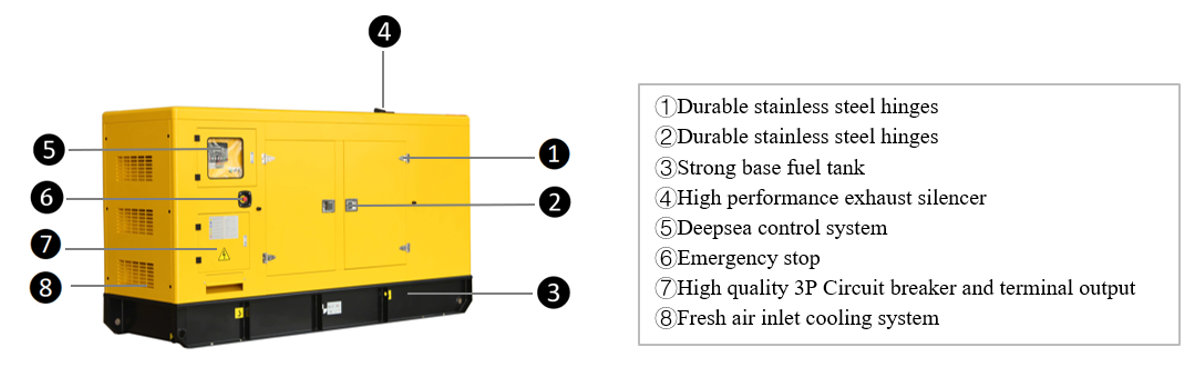

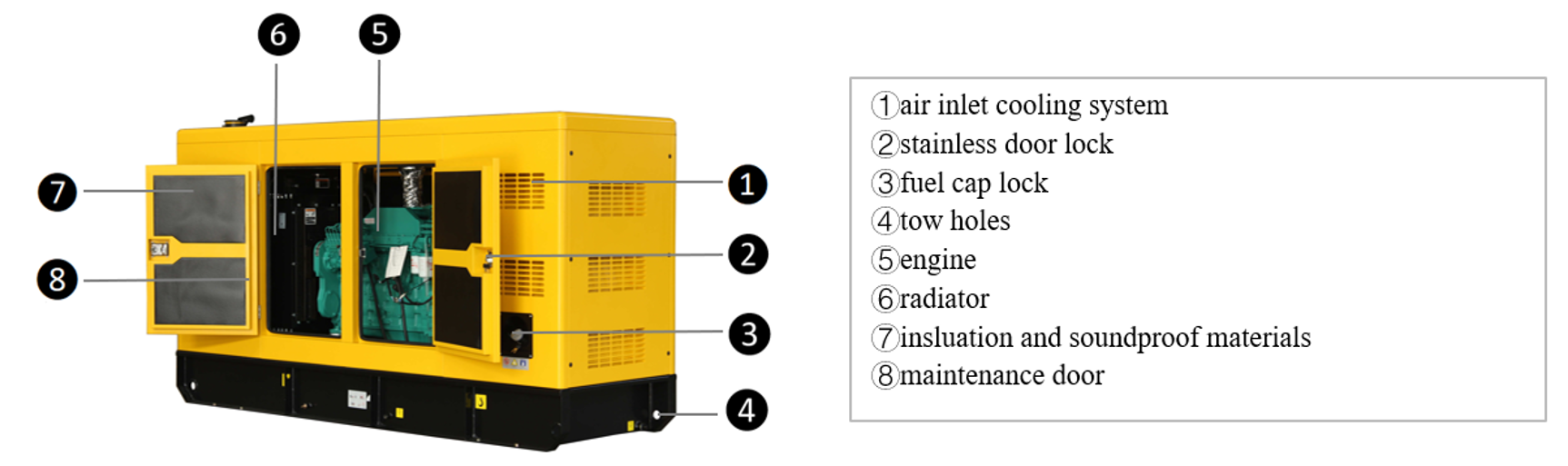

The generator set standard configuration:
Assembled by Deutz diesel engine and high quality branded alternator.
Radiator and fan with safety guard, or heat exchanger.
Heavy duty steel base frame with great capacity fuel tank for options.
Vibration damping supports between engine/alternator and base frame.
Heavy duty industrial type exhaust silencer with flexible bellow.
High capacity sealed lead acid battery with battery cable.
Intelligent control panel, Deepsea or Comap brand for options.
Control Panel Introduction
Genset Model | Prime Power (PRP) | Standby Power (ESP) | Engine model | Cylinder | ||
KVA | KW | KVA | KW | |||
ADE22 | 20 | 16 | 22 | 18 | BFM3 G1 | 4L |
ADE33 | 30 | 24 | 33 | 26 | BFM3 G2 | 4L |
ADE44 | 40 | 32 | 44 | 35 | BFM3T | 4L |
ADE55 | 50 | 40 | 55 | 44 | BFM3C | 4L |
ADE66 | 60 | 48 | 66 | 53 | BF4M2012 | 4L |
ADE80 | 73 | 58 | 80 | 64 | BF4M2012C G1 | 4L |
ADE100 | 90 | 72 | 100 | 80 | BF4M2012C G2 | 4L |
ADE110 | 100 | 80 | 110 | 88 | BF4M1013EC G1 | 4L |
ADE124 | 113 | 90 | 124 | 99 | BF4M1013EC G2 | 4L |
ADE138 | 125 | 100 | 138 | 110 | BF4M1013FC | 4L |
ADE176 | 160 | 128 | 176 | 141 | BF6M1013EC G1 | 6L |
ADE198 | 180 | 144 | 198 | 158 | BF6M1013EC G2 | 6L |
ADE206 | 189 | 150 | 206 | 165 | BF6M1013FC G2 | 6L |
ADE220 | 200 | 160 | 220 | 176 | BF6M1013FC G3 | 6L |
ADE250 | 225 | 180 | 250 | 200 | BF6M1015-LA GA | 6V |
ADE275 | 250 | 200 | 275 | 220 | BF6M1015C-LA G1A | 6V |
ADE303 | 275 | 220 | 303 | 242 | BF6M1015C-LA G2A | 6V |
ADE344 | 313 | 250 | 344 | 275 | BF6M1015C-LA G3A | 6V |
ADE385 | 350 | 280 | 385 | 308 | BF6M1015C-LA G4 | 6V |
ADE413 | 375 | 300 | 413 | 330 | BF6M1015CP-LA G | 6V |
ADE481 | 438 | 350 | 481 | 385 | BF8M1015C-LA G1A | 8V |
ADE495 | 450 | 360 | 495 | 396 | BF8M1015C-LA G2 | 8V |
ADE523 | 475 | 380 | 523 | 418 | BF8M1015CP-LA G1A | 8V |
ADE550 | 500 | 400 | 550 | 440 | BF8M1015CP-LA G2 | 8V |
ADE564 | 513 | 410 | 564 | 451 | BF8M1015CP-LA G3 | 8V |
ADE578 | 525 | 420 | 578 | 462 | BF8M1015CP-LA G4 | 8V |
ADE619 | 563 | 450 | 619 | 495 | BF8M1015CP-LA G5 | 8V |
ADE756 | 688 | 550 | 756 | 605 | HC12V132ZL-LAG 1A | 12V |
ADE825 | 750 | 600 | 825 | 660 | HC12V132ZL-LAG 2A | 12V |
Genset Model | Prime Power (PRP) | Standby Power (ESP) | Engine model | Cylinder | ||
KVA | KW | KVA | KW | |||
ADE28 | 25 | 20 | 28 | 22 | BFM3 G1 | 4L |
ADE39 | 35 | 28 | 39 | 31 | BFM3 G2 | 4L |
ADE52 | 48 | 38 | 52 | 42 | BFM3T | 4L |
ADE66-I | 60 | 48 | 66 | 53 | BFM3C | 4L |
ADE77 | 70 | 56 | 77 | 62 | BF4M2012 | 4L |
ADE89 | 81 | 65 | 89 | 72 | BF4M2012C G1 | 4L |
ADE107 | 98 | 78 | 107 | 86 | BF4M2012C G2 | 4L |
ADE124-I | 113 | 90 | 124 | 99 | BF4M1013EC G1 | 4L |
ADE138-I | 125 | 100 | 138 | 110 | BF4M1013EC G2 | 4L |
ADE151 | 138 | 110 | 151 | 121 | BF4M1013FC | 4L |
ADE184 | 168 | 134 | 184 | 147 | BF6M1013EC G1 | 6L |
ADE220-I | 200 | 160 | 220 | 176 | BF6M1013EC G2 | 6L |
ADE231 | 210 | 168 | 231 | 185 | BF6M1013FC G2 | 6L |
ADE241 | 219 | 175 | 241 | 193 | BF6M1013FC G3 | 6L |
ADE275 | 250 | 200 | 275 | 220 | BF6M1015-LA GB | 6V |
ADE303 | 275 | 220 | 303 | 242 | BF6M1015C-LA G1B | 6V |
ADE341 | 310 | 248 | 341 | 273 | BF6M1015C-LA G2B | 6V |
ADE385 | 350 | 280 | 385 | 308 | BF6M1015C-LA G3B | 6V |
ADE400 | 363 | 290 | 400 | 320 | BF6M1015CP-LA G1B | 6V |
ADE440 | 400 | 320 | 440 | 352 | BF6M1015CP-LA G2B | 6V |
ADE495-I | 450 | 360 | 495 | 396 | BF8M1015C-LA G1B | 8V |
ADE523-I | 475 | 380 | 523 | 418 | BF8M1015CP-LA G1B | 8V |
ADE550-I | 500 | 400 | 550 | 440 | BF8M1015CP-LA G2B | 8V |
ADE619-I | 563 | 450 | 619 | 495 | BF8M1015CP-LA G3B | 8V |
ADE756-I | 688 | 550 | 756 | 605 | HC12V132ZL-LAG1B | 12V |
ADE825-I | 750 | 600 | 825 | 660 | HC12V132ZL-LAG2B | 12V |
