Ai Power Marine Engine Introduction
Ai power marine generator set adopts Cummins, Weichai, Yuchai engine as the power source which are widely used in the sea area such as tugboat, fish boat, cruise ship. They can be used as marine prime power, emergency power or harbor area. We can provide CCS, BV, ABS, DNV classfication certificate. Cummins marine Diesel generator sets have features of compact structure, large power, low oil consumption, low discharge, low noise, reliable performances, and long services life. Its professional service networks are spread across the country and world, which can provide 24 hours after service and assure the supplying of accessories in time. Ai power has chosen Cummins engine B, C and L series supplied by Dongfeng Cummins engine Co., Ltd. and also the N, K series engines supplied by Chongqing Cummins Engine Co., Ltd.
Alternator Introduction
The marine alternator we choose the international famous brand like Stamford, Leroysomer, Marathon etc, they all enjoy the global warranty.
The alternator specification:
1. Single bearing or double bearing for options.
2. Insulation grade: H.
3. Protection class: IP23.
4. Phase: 3 phase, 4 wires or single phase for options.
5. Speed:1500rpm or 1800rpm.
6. Voltage: low, medium, and high voltage for options.
Generator Set Supply Scope
1. Assembled by Cummins marine engine and high quality branded alternator.
2. Heat exchanger type or radiator type for options.
3. Heavy duty steel base frame to connect the engine and alternator.
4. Vibration damping supports between engine/alternator and base frame.
5. Heavy duty industrial type exhaust silencer with flexible bellow.
6. High capacity sealed lead acid battery with battery cable.
7. Intelligent control panel, Deepsea or Comap brand for options.

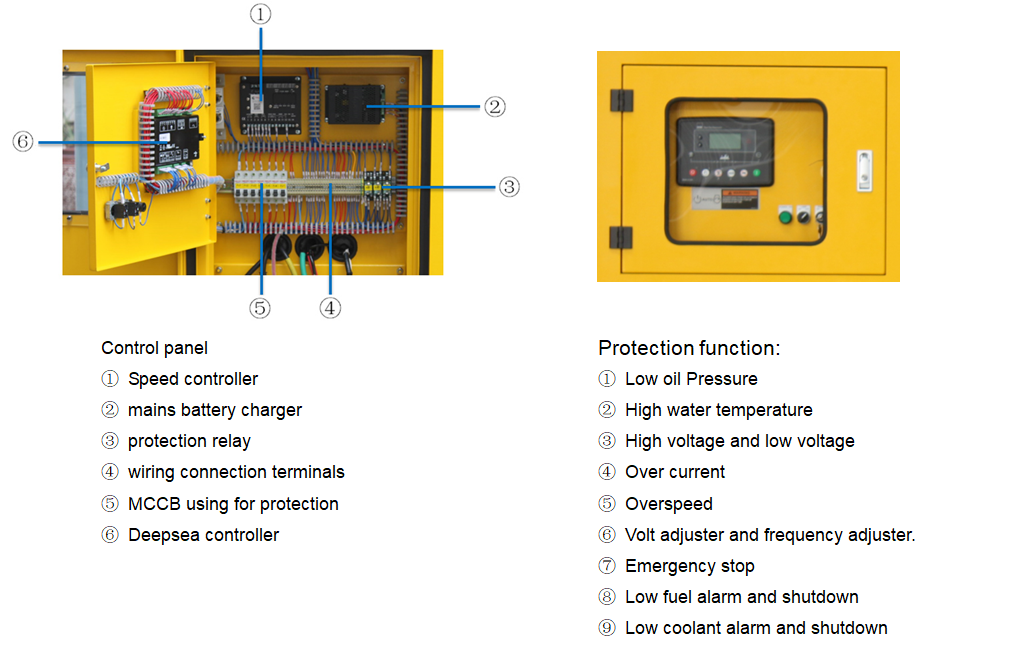

Control Panel Introduction
