MTU Engine Introduction
Ai power MTU series generator set adopts MTU engine as the power source. German Daimler-Chrysler MTU can be traced back to 18th century of mechanical times. The high quality of MTU’s engines is identical with the concept of reliability, advanced technology, high class performance and long service life. Now the two company MTU Friedrichshafen GmbH and Guangxi Yuchai Machinery Co., Ltd. built a joint venture company called MTU Yuchai Anteyou Power Co., Ltd. in China to produce the 4000 series MTU engines from 750kw to 4300kw with a production capacity of 1500 units per year.
Alternator Introduction
The alternator we choose the international famous brand like Stamford, Leroysomer, Marathon, etc, they all enjoy the global warranty. We can supply low, medium, and high voltage alternator for your options.

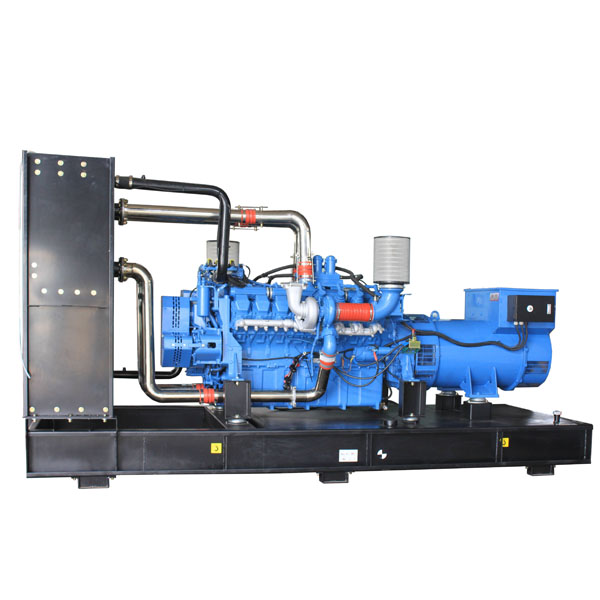

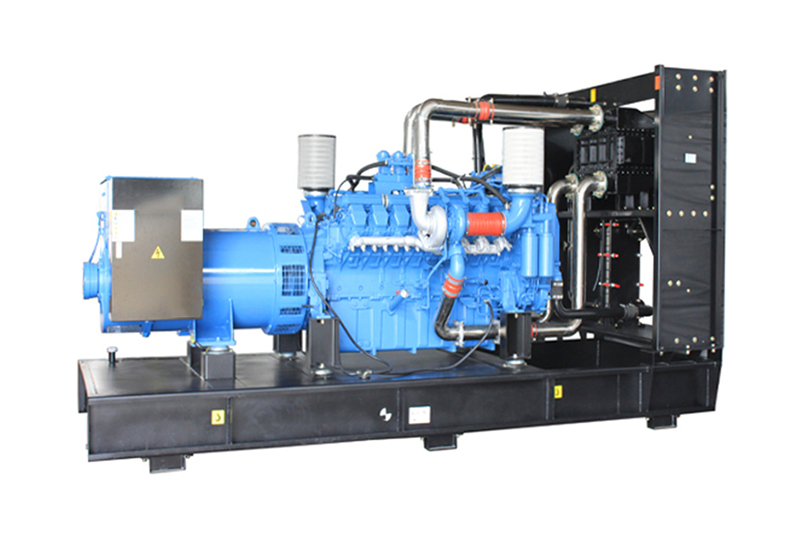

Generator Set
The generator set standard configuration:
1. Assembled by MTU diesel engine and high quality branded alternator.
2. Radiator and fan with safety guard, or heat exchanger.
3. Heavy duty steel base frame with great capacity fuel tank for options.
4. Vibration damping supports between engine/alternator and base frame.
5. Heavy duty industrial type exhaust silencer with flexible bellow.
6. High capacity sealed lead acid battery with battery cable.
7. Intelligent control panel, Deepsea or Comap brand for options.

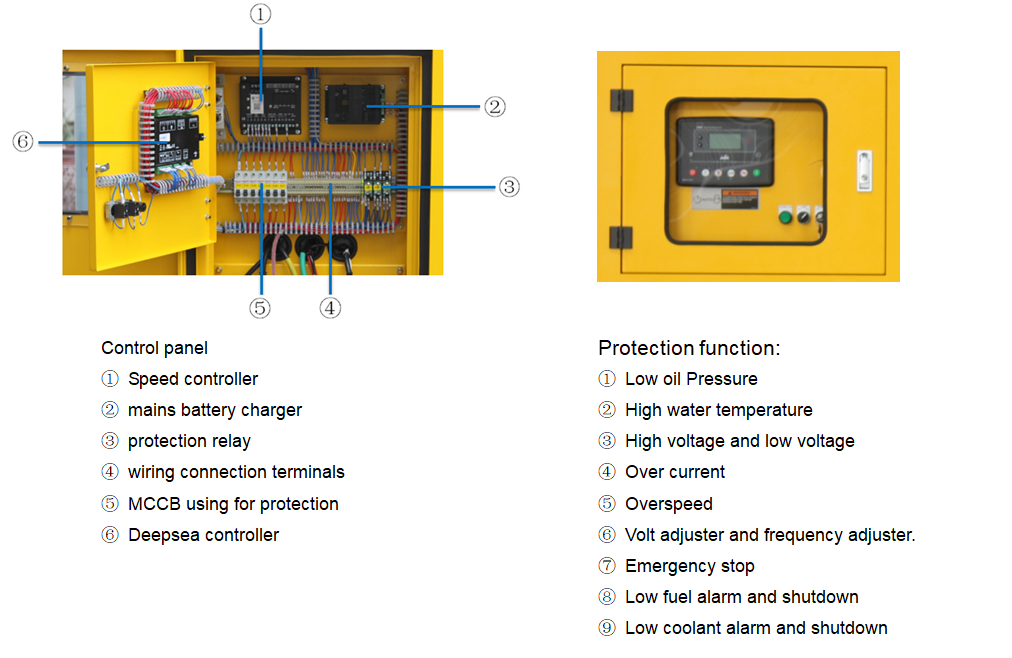

Control Panel Introduction
Genset Model | Prime Power (PRP) | Standby Power (ESP) | Engine model | Cylinder | ||
KVA | KW | KVA | KW | |||
AMT300 | 275 | 220 | 300 | 240 | 6R1600G10F | 6L |
AMT344 | 313 | 250 | 344 | 275 | 6R1600G20F | 6L |
AMT400 | 365 | 292 | 400 | 320 | 8V1600G10F | 8V |
AMT440 | 400 | 320 | 440 | 352 | 8V1600G20F | 8V |
AMT500 | 450 | 360 | 500 | 400 | 10V1600G10F | 10V |
AMT550 | 500 | 400 | 550 | 440 | 10V1600G20F | 10V |
AMT660 | 600 | 480 | 660 | 528 | 12V1600G10F | 12V |
AMT720 | 655 | 524 | 720 | 576 | 12V1600G20F | 12V |
AMT725 | 660 | 528 | 725 | 580 | 12V2000G25 | 12V |
AMT860 | 800 | 640 | 860 | 688 | 12V2000G65 | 12V |
AMT1020 | 925 | 740 | 1020 | 816 | 16V2000G25 | 16V |
AMT1100 | 1000 | 800 | 1100 | 880 | 16V2000G65 | 16V |
AMT1250 | 1125 | 900 | 1250 | 1000 | 18V2000G65 | 18V |
AMT1375 | 1250 | 1000 | 1375 | 1100 | 18V2000G26F | 18V |
AMT1650 | 1500 | 1200 | 1650 | 1320 | 12V4000G23 | 12V |
AMT1804 | 1640 | 1312 | 1804 | 1443 | 12V4000G23 | 12V |
AMT1980 | 1800 | 1440 | 1980 | 1584 | 12V4000G63 | 12V |
AMT2255 | 2050 | 1640 | 2255 | 1804 | 16V4000G23 | 16V |
AMT2420 | 2200 | 1760 | 2420 | 1936 | 16V4000G63 | 16V |
AMT2475 | 2250 | 1800 | 2475 | 1980 | 16V4000G63 | 16V |
AMT2750 | 2500 | 2000 | 2750 | 2200 | 20V4000G23 | 20V |
AMT3025 | 2750 | 2200 | 3025 | 2420 | 20V4000G63 | 20V |
AMT3300 | 3000 | 2400 | 3300 | 2640 | 20V4000G63L | 20V |
Genset Model | Prime Power (PRP) | Standby Power (ESP) | Engine model | Cylinder | ||
KVA | KW | KVA | KW | |||
AMT344-I | 313 | 250 | 344 | 275 | 6R1600G10S | 6L |
AMT385 | 350 | 280 | 385 | 308 | 6R1600G20S | 6L |
AMT440-I | 400 | 320 | 440 | 352 | 8V1600G10S | 8V |
AMT500-I | 450 | 360 | 500 | 400 | 8V1600G20S | 8V |
AMT550-I | 500 | 400 | 550 | 440 | 10V1600G10S | 10V |
AMT630 | 575 | 460 | 630 | 504 | 10V1600G20S | 10V |
AMT688 | 625 | 500 | 688 | 550 | 12V1600G10S | 12V |
AMT750 | 690 | 552 | 750 | 600 | 12V1600G20S | 12V |
AMT880 | 800 | 640 | 880 | 704 | 12V2000G45 | 12V |
AMT1020-I | 930 | 744 | 1020 | 816 | 12V2000G85 | 12V |
AMT1155 | 1050 | 840 | 1155 | 924 | 16V2000G45 | 16V |
AMT1265 | 1150 | 920 | 1265 | 1012 | 16V2000G85 | 16V |
AMT1500 | 1365 | 1092 | 1500 | 1200 | 18V2000G85 | 18V |
AMT1875 | 1700 | 1360 | 1875 | 1500 | 12V4000G43 | 12V |
AMT2200 | 2000 | 1600 | 2200 | 1760 | 12V4000G83 | 12V |
AMT2475 | 2250 | 1800 | 2475 | 1980 | 16V4000G43 | 16V |
AMT2750 | 2500 | 2000 | 2750 | 2200 | 16V4000G83 | 16V |
AMT3093 | 2813 | 2250 | 3093 | 2475 | 20V4000G43 | 20V |
AMT3500 | 3125 | 2500 | 3500 | 2800 | 20V4000G83 | 20V |
AMT3900 | 3500 | 2800 | 3900 | 3120 | 20V4000G83L | 20V |
